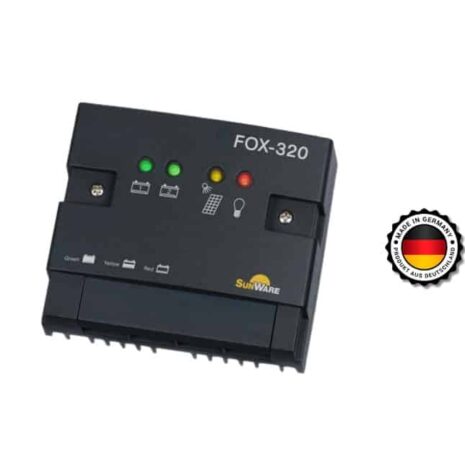

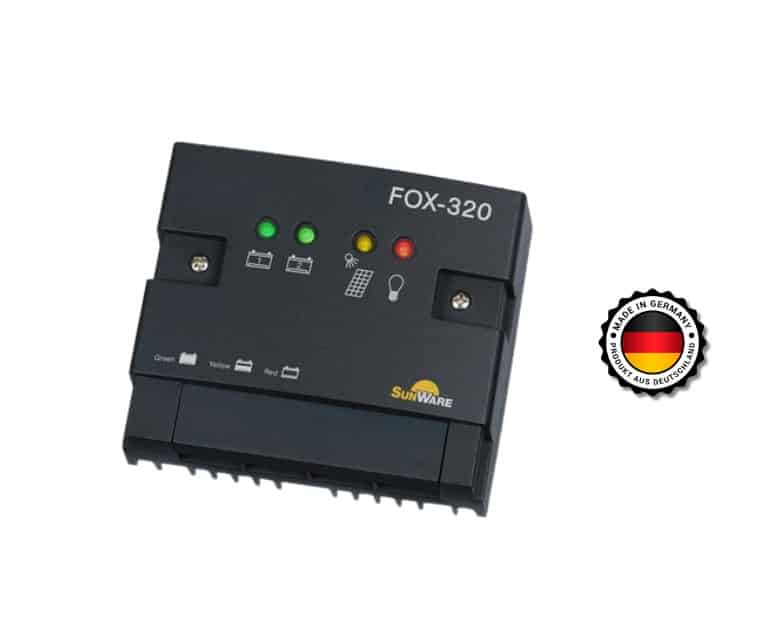

20A – 12/24V Sunware FOX-320 Solar Charge Regulator

Description

20A – 12/24V Sunware FOX-320 Solar Charge Regulator

The FOX-320 charge regulator is suitable for up to 20A and for AGM, gel and lead-acid type batteries. It protects against overcharging and over-discharging batteries and reversal of current. It functions even when there is a large difference in voltage between the PV module and the battery. It is suitable for charging two batteries simultaneously. The optimised charge characteristic curve in combination with the hardware PWM control achieves a distinctly faster and gentler charging of the battery. It also protects against hazardous gassing.

The 20A Sunware Fox solar charge controller is ideal for off grid pv systems in homes, RVs, boats and more.

Technical features :

• Nominal System Voltage: 12/24V
• For 2 batteries simultaneously
• Suitable for AGM, gel and lead-acid batteries
• Self-consumption: 12.0mA (with FOX-MD: 15.mA)
• Overcharge Protection: Max 20A at 25°C
• Voltage Temperature Coefficient: -20mV/°C at 12V, -40mV/°C
• Maximum Input Voltage: 50V (for open-circuit voltage Voc, see PV module specifications)
• Full Discharge Protection: Max 20A at 25°C
• Activation and Deactivation Delay: 1 minute
• With Night Mode: Max 20A at 25°C
• Protection Type: IP 22
• Indicators: Battery Status: Multi-color LED, Charging: Yellow LED, Output: Multi-color LED
• Weight: 300g
• Warranty: 1 year
• Manufacturer: Sunware, Germany
