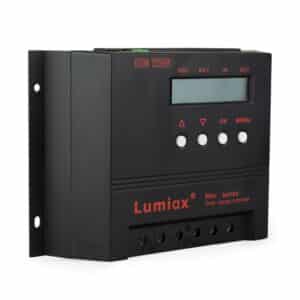

30A 12/24V Lumiax Solar charge controller with LCD screen and 2 USB ports

Description

30A 12/24V Lumiax Solar charge controller with LCD screen and 2 USB ports

The 30A Lumiax Charge controller safeguards your standalone 12V or 24V photovoltaic system, ensuring its long-term optimal performance. The 30A charge controller with two USB outputs is suitable for independent photovoltaic systems of 12V/24V and for charging mobile phones or other small devices. It’s an economical and solid solution for small to medium-sized photovoltaic installations. The controller includes instructions for the connection sequence and a display with indicators for the battery and PV system status.

The LUMIAX charge controller is designed to allow you to easily and simply monitor the status of your photovoltaic system while also providing the convenience of charging mobile phones or other devices with its two USB outputs

Technical Specifications:

• Maximum Load: 30A
• Nominal Operating Voltage: 12/24V, automatic detection
• USB Outputs: Yes, 2 ports
• USB Output: 5V DC / 2A (total)
• Connection Cable Cross-section: 2.5 mm²
• Operating Temperature Range: -20°C to +50°C
• Battery Voltage Range: 9V – 32V
• Maximum Open Circuit Voltage: 55V
• Battery Type Compatibility: Sealed (factory type), Flooded, GEL
• Load Disconnect Voltage for 12V & 24V: 10.8~11.8V & 21.6~23.6V respectively
• Load Reconnect Voltage for 12V & 24V: 11.6~12.8V & 23.2~25.6V respectively
• Relative Humidity: ~95%
• Waterproof Rating: IP32
• Dimensions: 53 x 96 x 189mm
• Weight: 420g
• Manufacturer: LUMIAX, China
• Certification: CE
• Warranty: 1 year
