Flexible Solar Battery Charger 200W – 12V – 10A with 20A Charge Controller & Battery clamps

Description

Flexible Solar Battery Charger 200W – 12V – 10A with 20A Charge Controller & Battery clamps

The 200W – 12V solar charger is particularly convenient for spaces where weight limitations or surface angles are a concern. Ideal for RVs, camping tent awnings, boat roll bars/bimini tops, and other applications. Provides power to 12V devices such as refrigerators, TVs, fans, LED lights, depth finders, GPS units, etc.

This charger is suitable for batteries of 120Ah and above. The charge controller included helps maintain system stability, protecting batteries from extreme voltage fluctuations while extending their lifespan.

Easy to Use

The charger has 4-meter cables (black & red) and alligator clips for easy battery pole connection. The solar panel features pre-drilled holes for quick mounting. The green and red LED indicators on the charge controller allow easy monitoring of battery charging status.

Technical Specifications – Solar Charger:

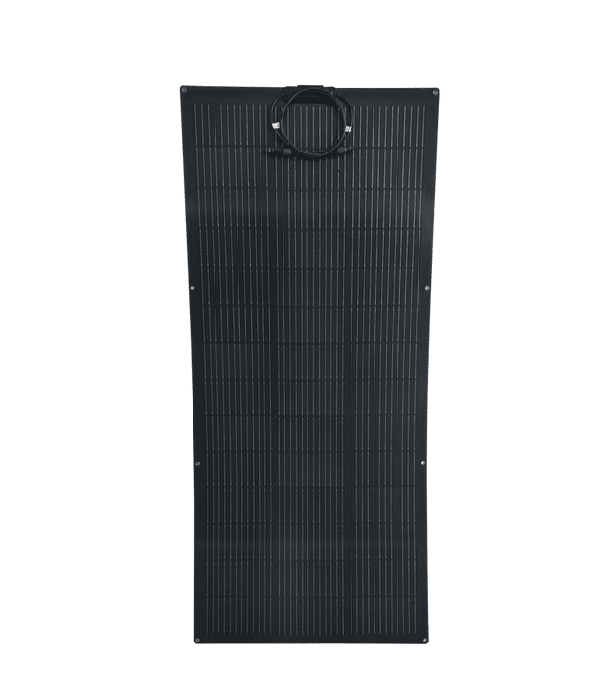

• Slightly Flexible Solar Panel
• Maximum Power: 200Wp
• System Voltage: 12V
• Output Voltage: 19.68V
• Maximum Current (Imp): 10.16A
• Open Circuit Voltage (Voc): 22.30V
• Short Circuit Current (Isc): 10.69A
• Cable Length (Front Side of Panel): 80cm

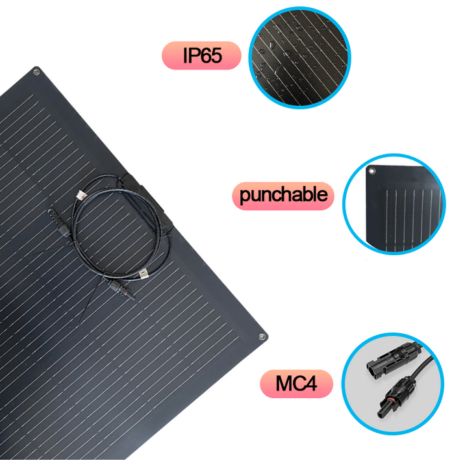

• MC4 Connectors for quick connection
• Solar Cell Efficiency: 21%
• Dimensions: 1500 x 680 x 3 mm
• Weight: 4.5 kg
• Waterproof: Yes, IP65-rated (resistant to rain and harsh weather conditions)
• Certifications: CE, RoHS
• Warranty: 3 years

Technical Specifications – Charge Controller:

• Max Load: 20A
• Operating Voltage: 12V / 24V (Automatic detection)
• USB Output: Yes, 2 USB ports
• USB Power Output: 5V DC / 2A (Total)
• Cable Cross-section: 5mm²*
• Operating Temperature: -20°C to +50°C
• Battery Voltage Range: 9V – 32V
• Max Open Circuit Voltage: 50V
• Supported Battery Types: Sealed, Flooded, GEL
• Load Disconnection Voltage (12V & 24V): 10.8~11.8V & 21.6~23.6V
• Load Reconnection Voltage (12V & 24V): 11.6~12.8V & 23.2~25.6V
• Relative Humidity: ~95%
• Not Waterproof (IP32-rated)
• Dimensions: 53 x 96 x 189mm
• Weight: 420g
• Manufacturer: Lumiax, China
• Certification: CE
• Warranty: 1 year
