Solar Battery Charger 150W-12V with Charge Controller 20A

Description

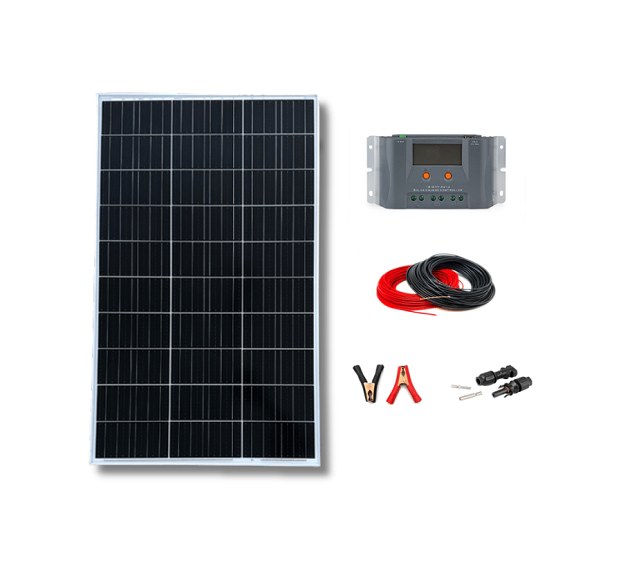

Solar Battery Charger 150W-12V with Charge Controller 20A

The 150W – 12V Solar Battery Charger is ideal for RVs, sailboats, trailers, as well as for security systems/cameras, generators, agricultural machinery, and more. Suitable for charging and maintaining 12V batteries with a capacity of 150Ah and above. It can power 12V lamps, LED spotlights, refrigerators, TVs, fans, and more. Includes a USB port for simultaneous mobile phone charging.

High Durability

The photovoltaic panel, framed in aluminum, is sturdy and highly resistant to harsh weather conditions. The four corners of the frame feature hard plastic covers for additional protection from drops and vibrations. The glass layer shields the solar cells from dust, rain, snow, and more. The cell lifespan exceeds 20 years.

Easy to Use

The aluminum frame includes pre-drilled holes on the back for easy mounting. Comes with a cable (4 m red + 4 m black) for connecting to the regulator, and an extra 1-meter cable with alligator clips for quick battery terminal connection. The charge controller’s easy-to-read display helps monitor battery charging status.

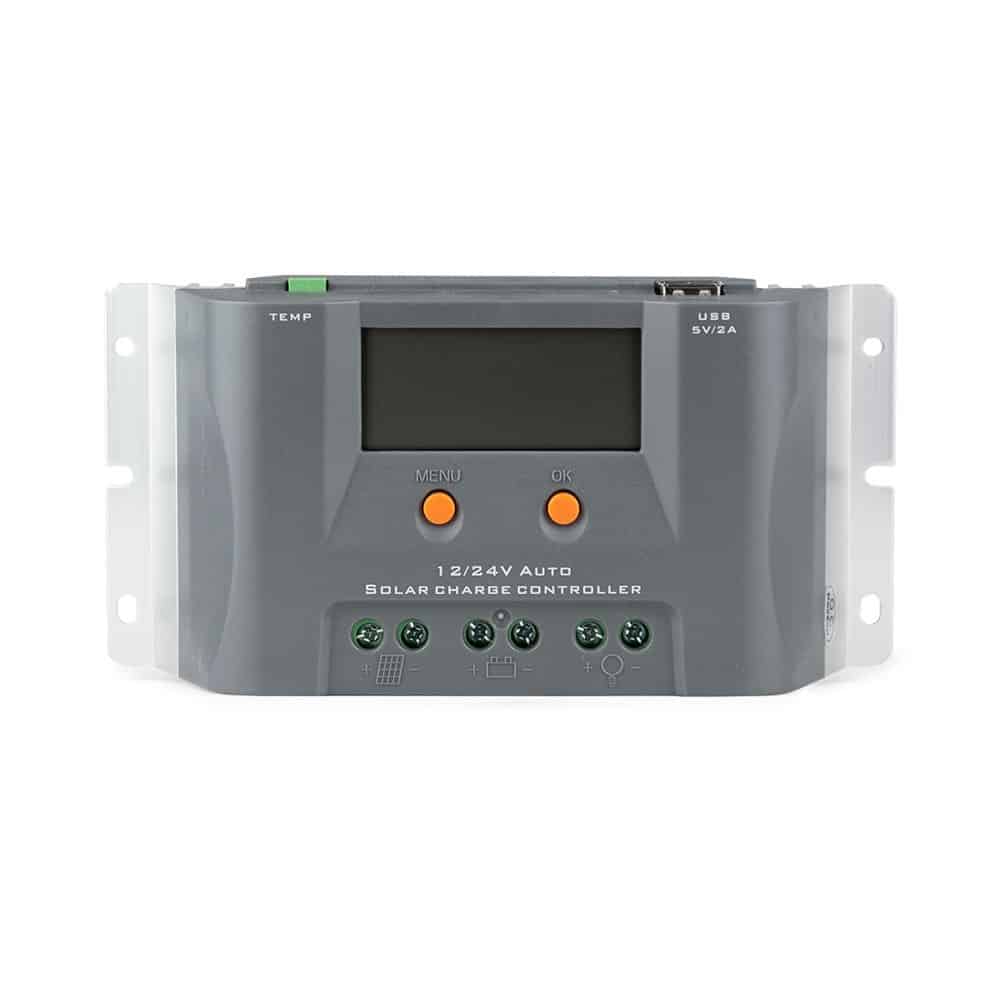

Charge controller technical specifications:

• Maximum current : 20 Α
• Voltage system : 12V / 24 V
• USB ports: yes
• Digital screen: yes
• Solar panel maximum voltage: 50V
• Solar panel maximum power: 260W (12)/ 520W (24V)
• For batteries:  lead acid/Gel/AGM
• Temperature range: from -20° C  to +50°C
• Automatic recognition
• LCD screen: yes
• USB outlet: yes
• Cable size: 6 mm² *
• IP32
• Dimensions: 53 x 96 x 189 mm
• Weight: 420 g
