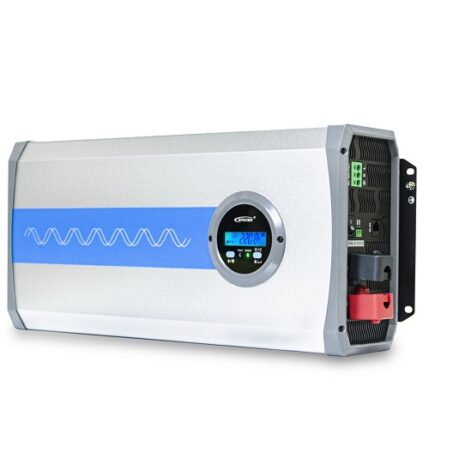

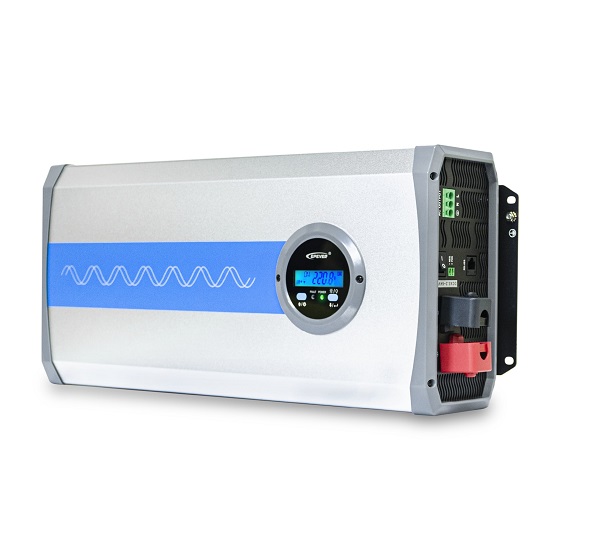

IP-3000-12-Plus Epsolar Epever 3000W – 12V Pure sine wave inverter

IP-3000-12-Plus Epsolar Epever 3000W – 12V Pure sine wave inverter

The IPower series consists of pure sine wave inverters that can convert 12/24/48VDC to 220/230VAC. Their design offers a broader temperature range for optimal operation and easy installation. The wide input voltage range is ideal for photovoltaic system applications. These inverters are particularly used for emergency home lighting, vehicle power, and outdoor activities.

Some of the general features that all the IP series inverters have include:

• Safe design with electrical insulation at both input and output
• Use of advanced SPWM technology for pure sine wave output
• LED indicators for error presence and operational status
• Lower power consumption in standby mode
• Maximum efficiency of up to 95%
• Input protection against overvoltage and low voltage
• Output protection against overload and short circuit

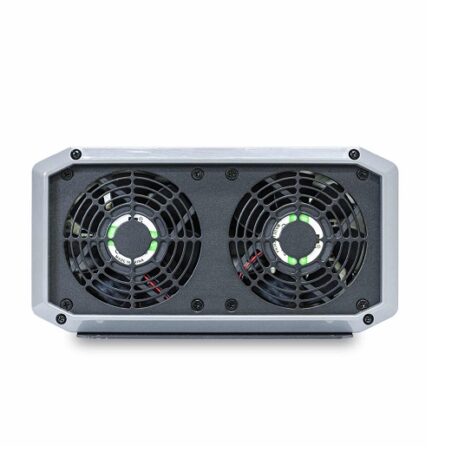

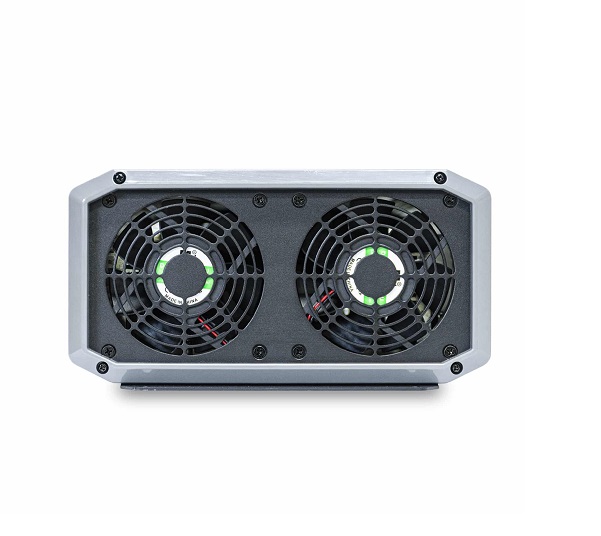

• Equipped with a cooling fan for overheating protection
• USB output of 5VDC / 1A

Technical Specifications:

• Continuous Power: 3000W
• Peak Power: 6000W
• Input Voltage: 10.8 ~ 16VDC
• Output Voltage: 230VAC (-7% ~ +5%)
• Self Power Consumption: <1.0A
• Efficiency: 94%
• In case of overheating, the power supply to devices is interrupted and will resume when the temperature decreases
• Provides protection against short circuit, overload, and low/high battery voltage
• Output Connectors: Schuko (Schuko)
• Certifications: e-13/CE/FCC
• Dimensions: 557 x 231 x 123 cm
• Weight: 10.5 kg
• Warranty: 1 year
• Manufacturer: Epsolar
