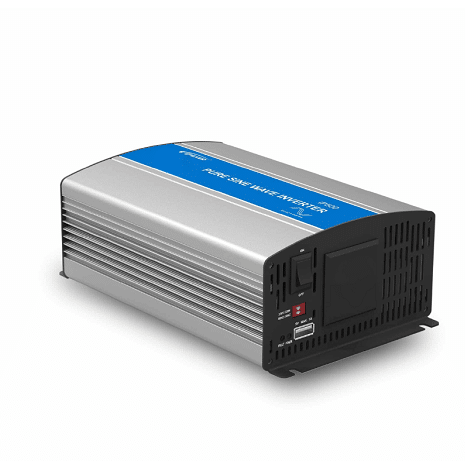

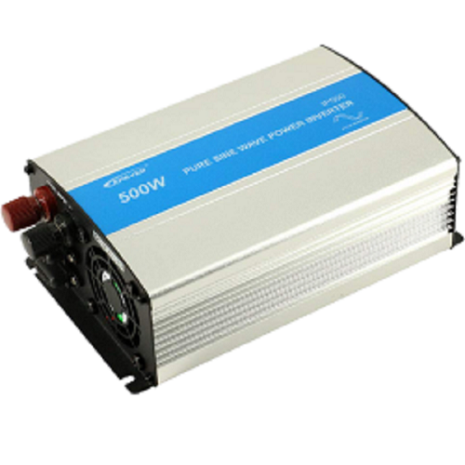

500W 24V Epsolar Pure Sine Wave Inverter

Description

500W 24V Epsolar Pure Sine Wave Inverter

The IPower series consists of pure sine wave inverters that can convert 12/24/48VDC to 220/230VAC. Their design provides a greater temperature range for optimal functionality and easy installation. The wide input voltage range is ideal for photovoltaic system applications.

These inverters can be used in various applications such as emergency home lighting, vehicle power, and outdoor activities.

Some of the general features that all inverters in the IP series have include:

• Safe design with electrical insulation at both input and output
• Use of advanced SPWM technology for pure sine wave production
• LED indicators for error detection and operational status
• Lower power consumption when in standby mode
• Maximum efficiency of up to 95%
• Input protection against overvoltage and undervoltage
• Output protection against overload and short circuit
• Equipped with a cooling fan for overheating protection
• USB output of 5VDC / 1A

Technical Specifications:

• Continuous Power: 400W
• Peak Power: 1000W
• Input Voltage: 21.6 ~ 32VDC
• Output Voltage: 230VAC (-10% ~ +5%)
• Self Power Consumption: <0.5A
• Efficiency: 92%
• In case of overheating, the power supply to devices is interrupted and will resume when the temperature decreases
• Provides protection against short circuit, overload, and low/high battery voltage
• Output Connectors: Schuko (Schuko)
• Certifications: e-13/CE/FCC
• Dimensions: 7.5 x 13.2 x 23.2 cm
• Weight: 1.7 kg
• Warranty: 1 year
• Manufacturer: Epsolar
