Charge Controller 45A, MPPT, MorningStar

Description

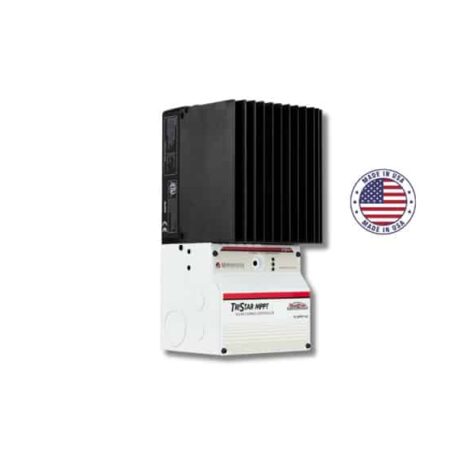

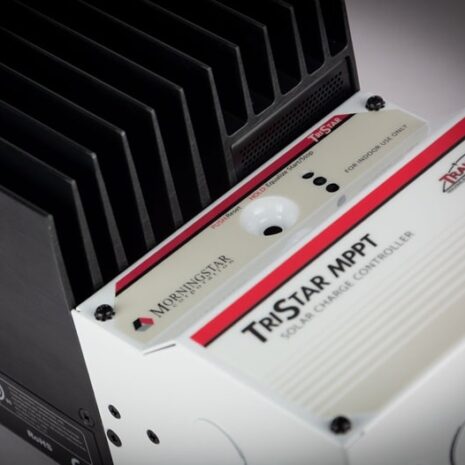

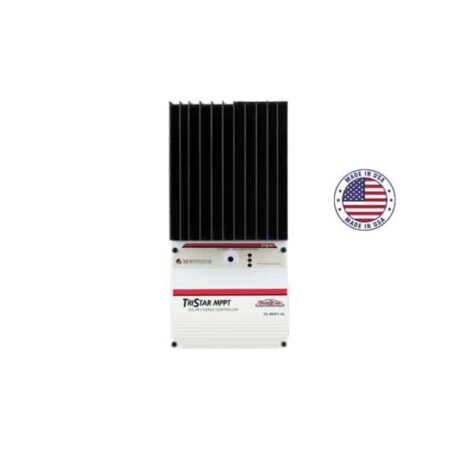

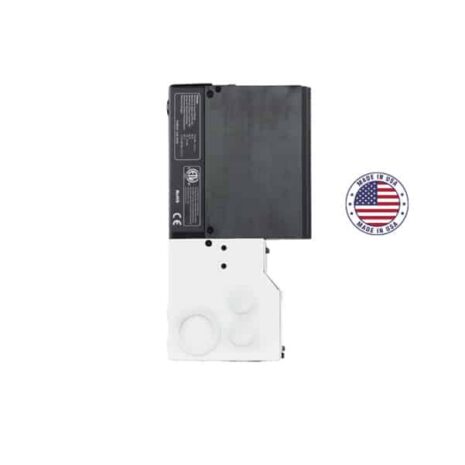

  Charge Controller 45A  MPPTM Morning Star

   Morningstar’s TriStar MPPT solar controller with TrakStar Technology™ is an advanced maximum power point tracking (MPPT) battery charger for off-grid photovoltaic (PV) systems up to 3kW. The controller provides the industry’s highest peak efficiency of 99% and significantly less power loss compared to other MPPT controllers.

    The TriStar MPPT features a smart tracking algorithm that maximizes the energy harvest from the PV by rapidly finding the solar array peak power point with extremely fast sweeping of the entire I-V curve. This product is the first PV controller to include on-board Ethernet for a fully web-enabled interface and includes up to 200 days of data logging.

Technical Specifications:

• Maximum Battery Current: 45A
• Nominal Maximum Solar Input: 600W  (12V)  –  1200W (24V)   –   2400W (48V)
• Peak Efficiency: 99%
• Nominal System Voltage 12 / 24 / 36 / 48 VDC
• Max. Solar Open Circuit Voltage: 150VDC
• Battery Operating Voltage Range: 8-72VDC
• Max. Self – Consumption: 2.7W
• Transient Surge Protection: 4500W/port
• Communication Ports:
• MeterBus: Yes
• RS-232: Yes
• EIA-485: No
• Ethernet: No
• Electronic Protections:
• Solar: Overload, Short Circuit, High VoltageBattery:
• High VoltageHigh TemperatureLightning and Transient Surges
• Reverse Current at NigΗΤ
• Mechanical Characteristics : Dimensions:   29.1 x 13.0 x 14.2 cm
• Weight: 4.2 kg / 9.2 lbs.
• Max. Wire Size: 35 mm² / 2 AWG
• Certifications: CE Compliant, ETL Listed (UL1741), cETL (CSA C22.2 No. 107.1-01), FCC Class B Part 15 Compliant, Complies with (NEC) U.S. National Electric Code, RoHS Compliant, Manufactured in a certified ISO 9001 facility
• Manufacturer: MorningstarCorp, USA
