Description

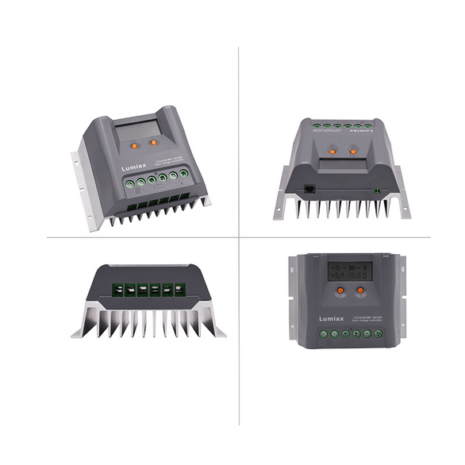

60A 12/24/36/48V Lumiax PWM Charge controller
The 60A charge controller is a particularly user-friendly solution for protecting and ensuring the smooth operation of your photovoltaic system. It is used in installations ranging from 12/24/36/48V up to 60A.
The Lumiax charge controller is high-performing and durable, offering exceptional ease of use. Its modern and meticulous design provides a clear picture of your battery’s status. Among the advantages of this specific model are protections against:
- Overcharging and deep discharge
- Incorrect connection of loads or photovoltaic collectors
- Short circuit of load or photovoltaic collectors & reverse current flow
Technical Specifications:
- Maximum Charging Current: 60A
- Compatible System Voltages: 12/24/36/48V
- Automatic Voltage Recognition
- Suitable for Battery Types: GEL, AGM, Liquid, Lithium
- Programmable Night Mode: Yes
- Digital Display Indicators: Voltage & battery status, current, total energy & consumption, etc.
- Protection Rating: IP 32

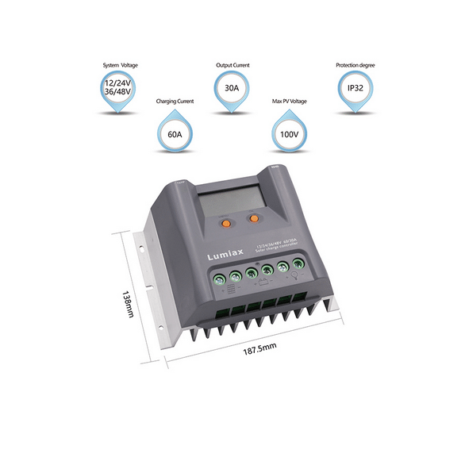

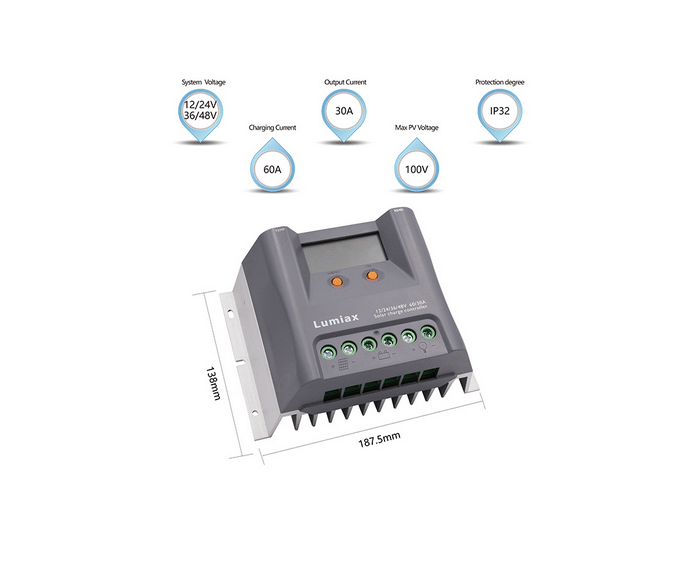

- Dimensions: 130 x 187.5 x 88.5 mm
- Weight: 1.1 kg
- Certifications: CE, RoHS
- Manufacturer: Lumiax, China
- Warranty: 1 year
Contact us to learn more and we would be happy to recommend solutions that best meet your needs.
Additional information
Weight | 1,00 kg |
---|---|
Τύπος Ρυθμιστή | PWM |
Operating Voltage | 48V, 12V, 24V |
Μέγεθος (Ρυθμιστές Φόρτισης) | 40A+ |
Brand | Lumiax |
