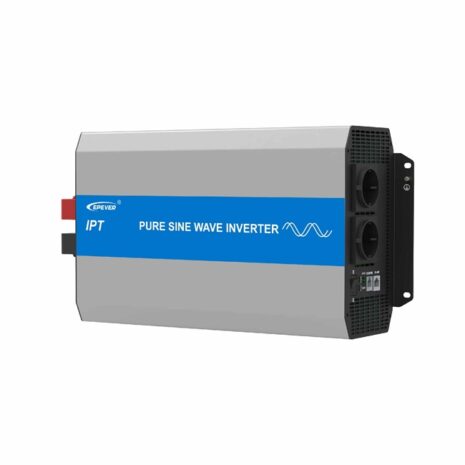

500W 12V IPT Epever Pure Sine Wave Inverter

Description

500W 12V Epever Pure Sine Wave Inverter

The IPT series products are pure sine wave inverters capable of converting 12/24/48VDC to 220/230VAC. Their design offers a wider operational temperature range for optimal performance and easy installation. The extensive input voltage range is ideal for photovoltaic system applications. These inverters can be utilized in a variety of applications, such as emergency home lighting, vehicle power supply, and outdoor activities. Some of the general features that make them particularly appealing include:

Safe design with electrical insulation at both input and output

• Use of advanced SPWM technology for pure sine wave output
• LED indicators for error detection and operational status
• Lower power consumption in standby mode
• Maximum efficiency of up to 95%
• Input protection against overvoltage and undervoltage

Technical Specifications:

• Continuous Power: 500W
• Peak Power: 1000W
• Input Voltage: 10.8 ~ 16VDC
• Output Voltage: 230VAC (-10% ~ +5%)
• Self Power Consumption: <0.9A
• Efficiency: 92%
• In case of overheating, the power supply to devices is automatically cut off and will resume when the temperature decreases
• Provides protection against short circuit, overload, and low/high battery voltage

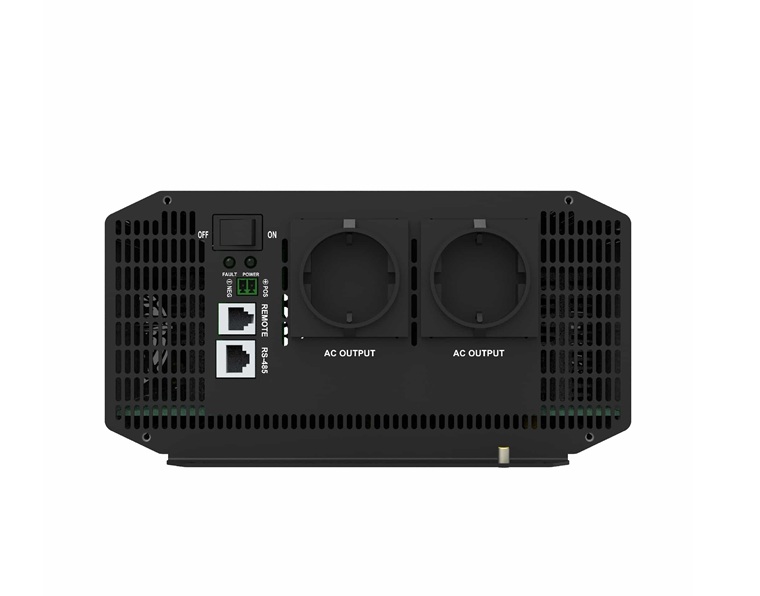

• Output Connectors: Schuko (Schuko)
• Certifications: e-13/CE/FCC
• Dimensions: 286 × 160 × 73mm
• Weight: 2.3 kg
• Warranty: 1 year
• Manufacturer: Epsolar
