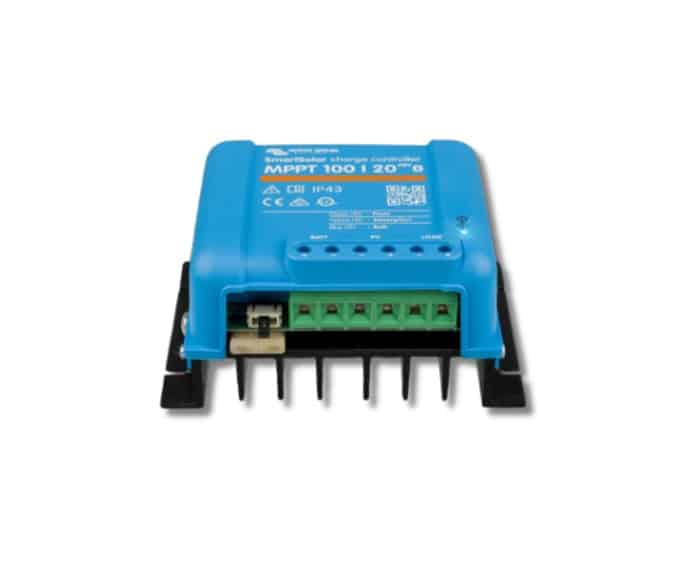

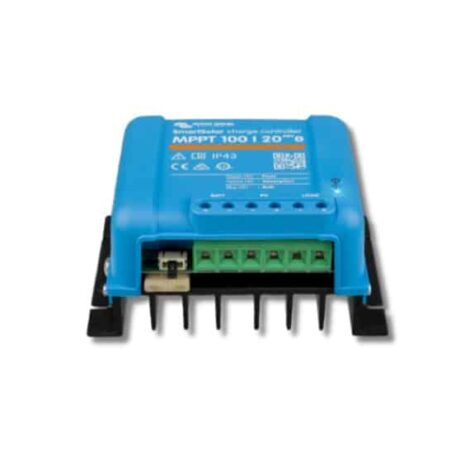

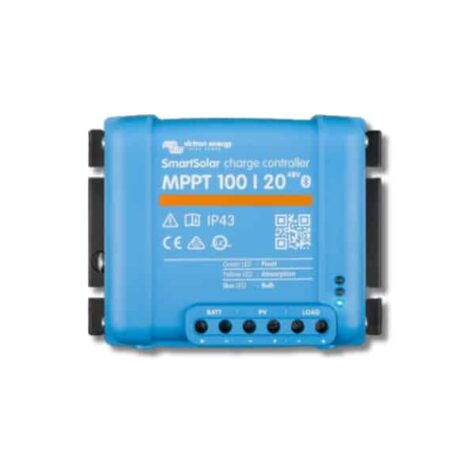

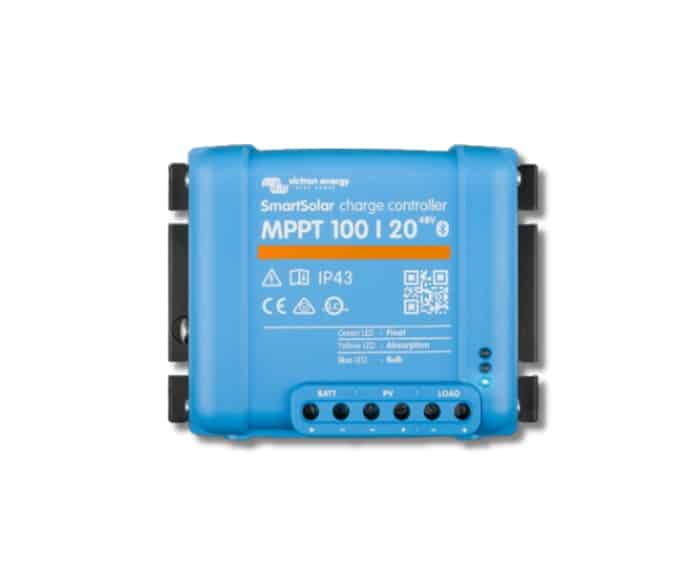

Victron SmartSolar MPPT 20A 12/24V Charge Controller with Bluetooth

119,00 € (Price without VAT: 95,97 €)





In stock

SKU: HM57120 Categories: , , ,

Description

Victron SmartSolar MPPT 20A 12/24V Charge Controller with Bluetooth

The Victron SmartSolar MPPT 20A 12/24V charge controller with Bluetooth is designed for small off-grid solar systems (12V). It protects the system from overcharging, discharging, short circuits, and ensures long-term reliable operation. The LED indicators make it easy to monitor the solar system status. Ideal for boats, RVs, campers, trucks, remote warehouses and other applications.

Technical Specifications:
  • System Voltage: 12V / 24V / 48V
  • Maximum Charging Current: 20A
  • Maximum Power from Solar System (12V/24V/48V): 290W / 580W / 1160W
  • Maximum Input Voltage from Open Circuit Solar System: 100V
  • Maximum Short Circuit Current from Solar Panel: 20A
  • Maximum Efficiency: 98%
  • Self-Consumption:
    • 26mA (12V)
    • 20mA (24V)
    • 19mA (48V)
  • Charge Voltage “Absorption”: Default 14.4V / 28.8V (Adjustable)
  • Charge Voltage “Float”: Default 13.8V / 27.6V (Adjustable)
  • Charging Algorithm: Multi-stage
  • Protection Against:

    • Reverse current
    • Short circuit
    • Overheating
  • Operating Temperature: -35ºC to +60ºC
  • Cable Cross-section: 6mm²
  • Waterproof: No (IP20)
  • Additional Protection Against:
    • Reverse polarity
    • Short circuit
    • Overheating
  • Data Storage in Victron App: 46 days
  • Dimensions: 100 x 131 x 60 mm
  • Weight: 0.65 kg
  • Safety Certifications: CE, EN/IEC 62109-1, UL 1741, CSA C22.2
  • Warranty: 1 year
  • Manufacturer: Victron Energy, Netherlands

Additional information

Weight 0,5 kg
Brand

Victron
Τύπος Ρυθμιστή

MPPT
Μέγεθος (Ρυθμιστές Φόρτισης)

10A – 39.9A
Operating Voltage

48V, 12V, 24V
