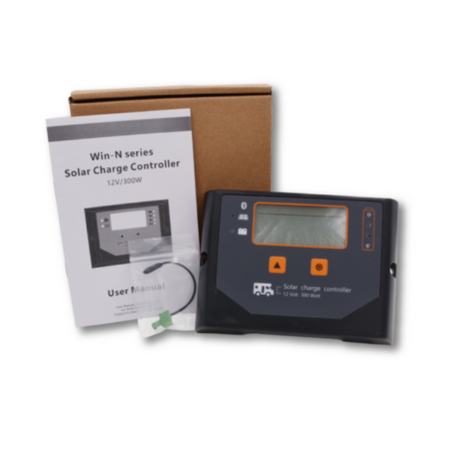

17Α 12V PWM Charge controller with Bluetooth for RVs

Description

17Α 12V PWM Charge controller with Bluetooth for RVs

Suitable for 12V autonomous photovoltaic systems in RVs, this controller ensures smooth operation of the battery and solar panel.

One of the main benefits of this particular controller is its integrated Bluetooth functionality, which allows for remote monitoring of the solar system. It offers exceptional flexibility as it can connect with seven different types of batteries: lead-acid, Gel, AGM, flooded, calcium, lithium-ion, and lithium iron phosphate.

Easy and simple to use, it features options to adjust its operation based on the system’s needs. Thanks to the readable LCD screen, you can monitor the battery’s charging status. The controller includes a built-in sensor for automatic adjustment to the system’s temperature changes.

Its primary functions include protection against: short-circuiting of the photovoltaic and loads, overcharging, reverse polarity of photovoltaics, and reverse polarity of the battery.

Technical Specifications:

• Max current: 17 Α
• System voltage : 12V
• Max battery voltage: 20V
• Max voltage from a solar panel: 300V
• Integrated Bluetooth: ability to monitor a system from up to 10 meters.
• Can be supported from an android device
• For battery types: lead acid/Gel/AGM/calcium, lithium-ion, and lithium iron phosphate. (can be programmed by the user)
• Operation temperature range: from -20° C to +55°C
• With illuminated LCD screen
• Self consumption : ≤9.2mA/12V – ≤11.7mA/24V
• Cable size: 4 mm² *
• Waterpoof: yes IP65

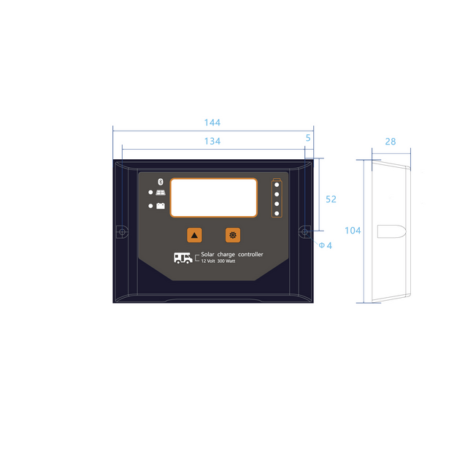

• Dimensions: 144 x 104 x 28 mm
• Weight: 0,18 kg
• Warranty: 2 years
