12V Digital Timer with relay

Description

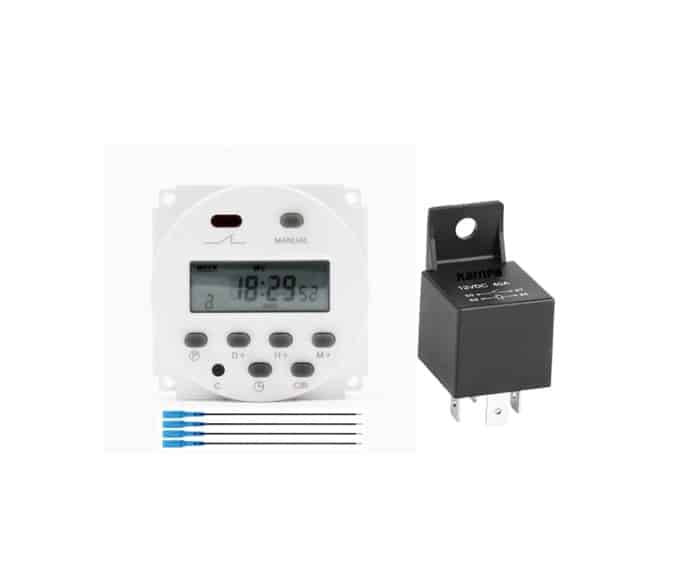

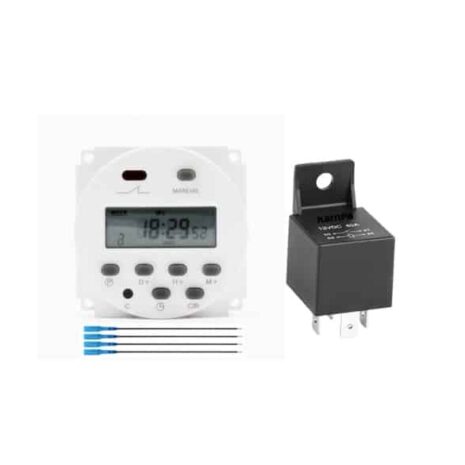

12V Digital Timer with relay

The 12V digital timer is ideal for automatically activating lamps/led flood lights as well as alarms/cameras, security doors, electric fences, etc. It provides safety and operational autonomy in areas where there is no grid power or remote control of devices is not feasible. It is particularly useful for remote locations, vacation homes, industrial/livestock units, farms, and other isolated applications. It can automatically activate water pumps, irrigation systems, feeders, etc.

This is a weekly 12VDC timer with multiple programming options. You can set it to operate uniformly for 3, 5, or 7 days, or program each day separately. The minimum program time is 1 minute. It features an indicator and a backup battery with up to 3 years of lifespan. The output is relay-based (15A) and operates independently from the power supply.

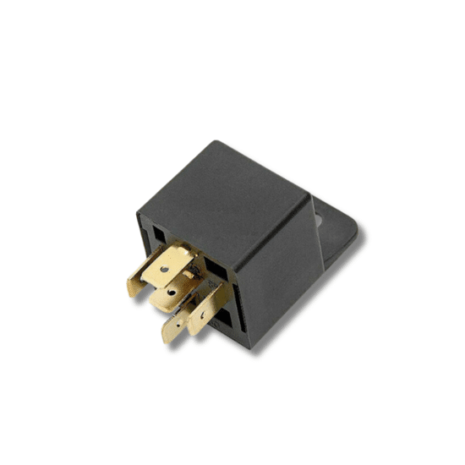

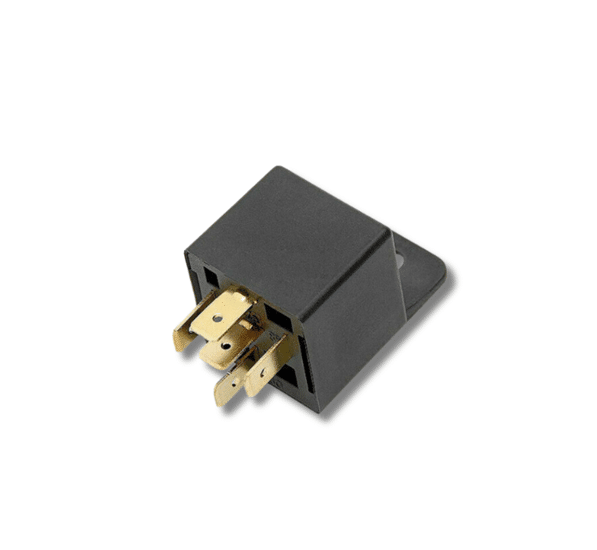

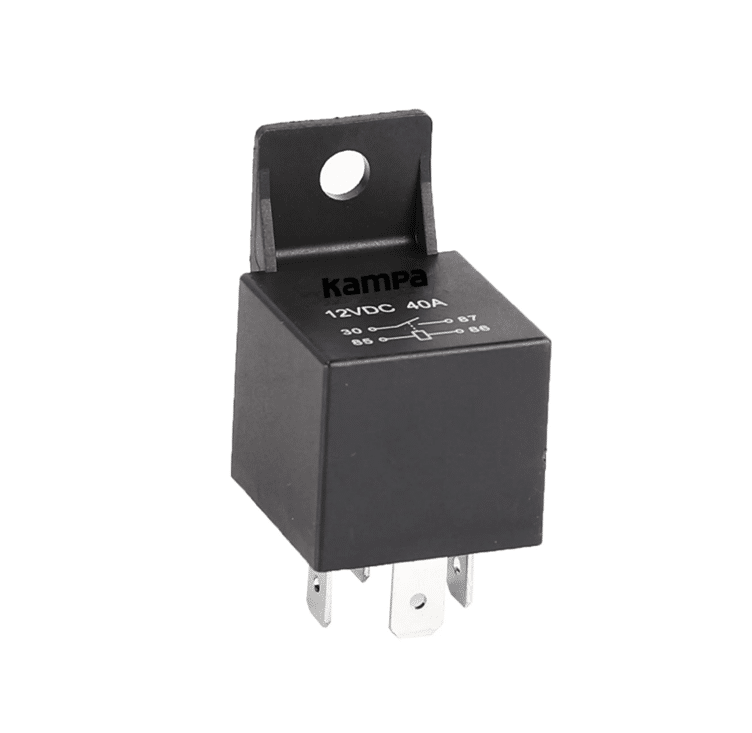

It includes 4 plugs/cables for easy connection/disconnection. Dry contact relay. It comes with a protection relay that ensures safety and protection for high-demand autonomous photovoltaic applications.

Technical Specifications:

• Input/Operating Voltage: 12VDC
• Maximum output contact current: 15A
• Digital display
• Maximum clock deviation: +/-30 seconds per week
• 28 operating programs (On/Off) per day
• Minimum operation time: 1 minute
• Self-consumption in standby mode: 1.6mA
• Internal Ni-Cd backup battery lifespan: 2-3 years
• Includes cables for easy installation
• Dimensions: 61 x 59 x 31 mm
• Weight: 200g
• Warranty: 1 year
